Features :

1.Domestic hot water application , even commercial application.

2.150-300 Liters capacity , more choices.

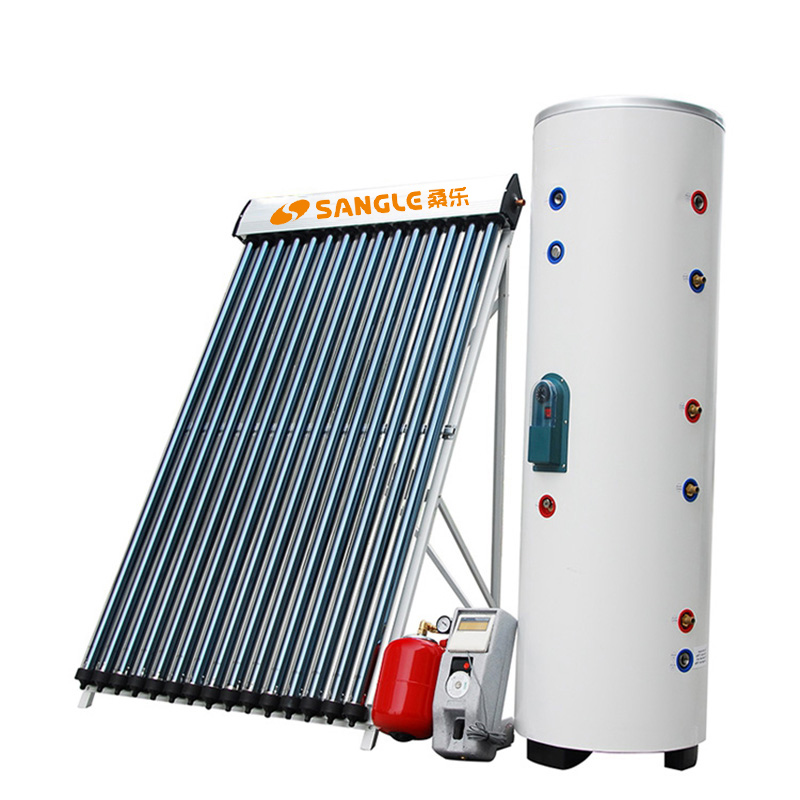

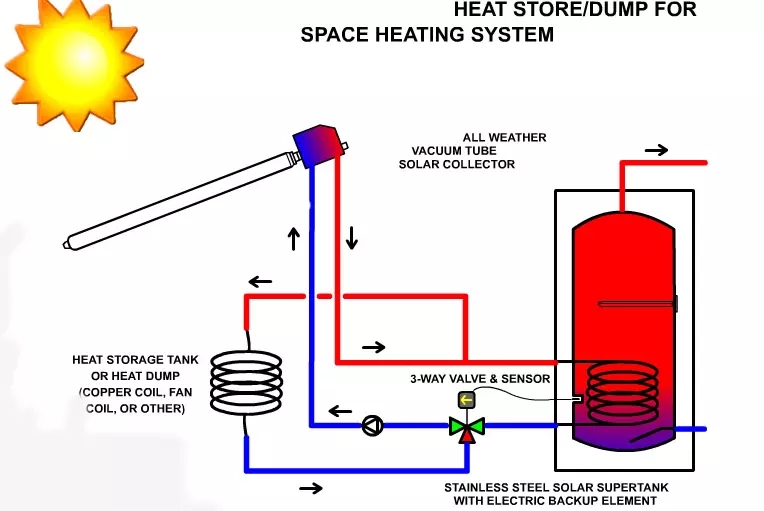

3.Easy to install ,can be mounted on the flat or pitched roof.

4.Split system, forced pump circulation, beautiful appearance after installation.

5.Solar collector unit has higher performance in a cold climate.

6.SUS304 stainless steel solar water tank.

Product Description

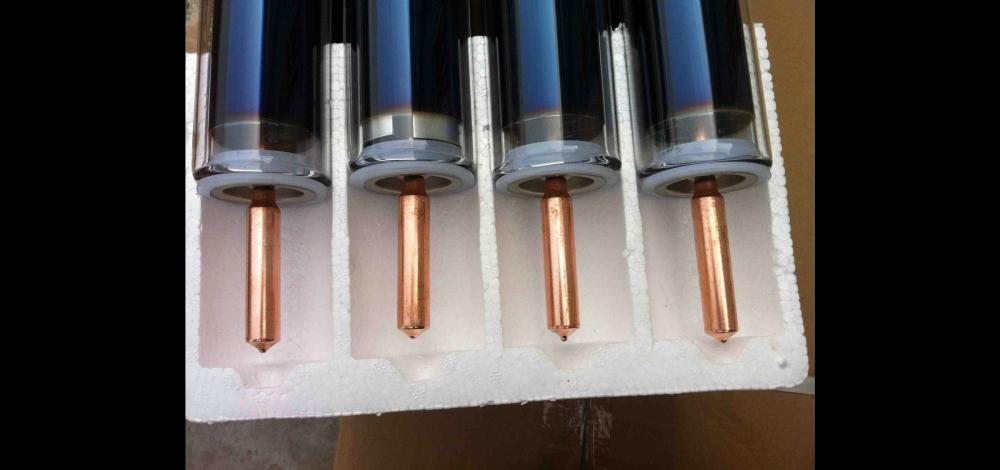

Vacuum Pipe	Specification	φ58×1800	φ58×1800	φ58×1800	φ58×1800
	Quantity (piece)	18	20	24	30
	Pipe distance (mm)	75	75	75	75
Main Pipe of Flow Channel	Material	TP2 oxygen-free copper	TP2 oxygen-free copper	TP2 oxygen-free copper	TP2 oxygen-free copper
	Pipe diameter (mm)	35	35	35	35
	Wall thickness (mm)	0.8	0.8	0.8	0.8
Hot Pipe	Material	TP2 oxygen-free copper	TP2 oxygen-free copper	TP2 oxygen-free copper	TP2 oxygen-free copper
	Pipe diameter (mm)	8	8	8	8
	Wall thickness (mm)	0.6	0.6	0.6	0.6
Total Area of Heat Collector (m²)		2.9	3.2	3.8	4.7
Daylighting Area (m2)		1.8	2	2.4	3
Pressure Bearing Capability (Mpa)		0.6	0.6	0.6	0.6
External Dimensions (mm)		1960*1480	1960*1630	1960*1930	1960*2380
Net Weight (KG) (45ºC)		68	76	92	114
