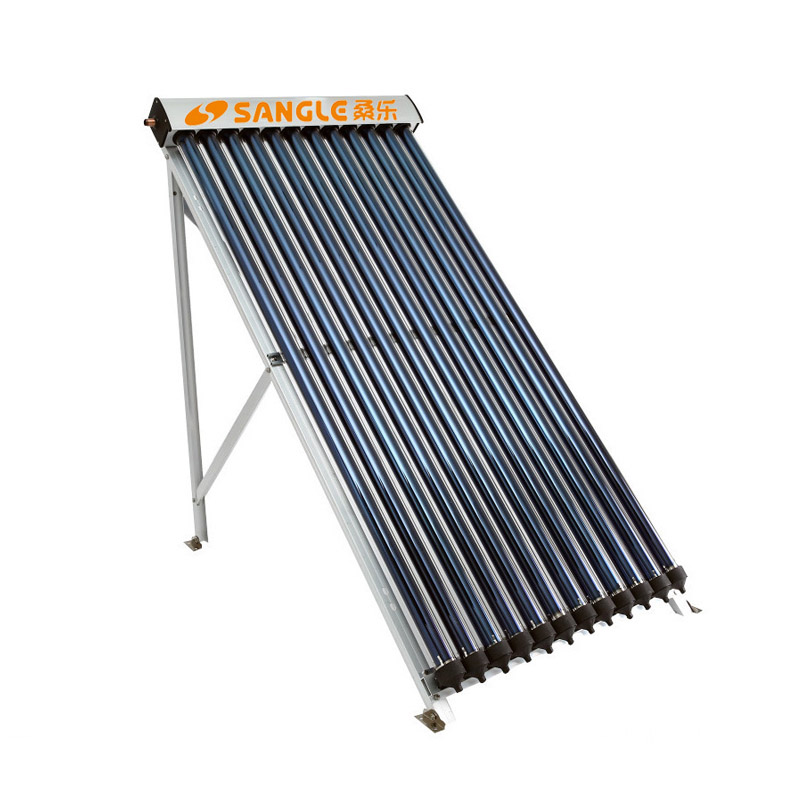

Split Pressurized Heat Pipe Solar Vacuum Tube Collector
Features :
1. Domestic hot water application , even commercial application.
2. 150-300 Liters capacity , more choices.
3. Easy to install ,can be mounted on the flat or pitched roof .

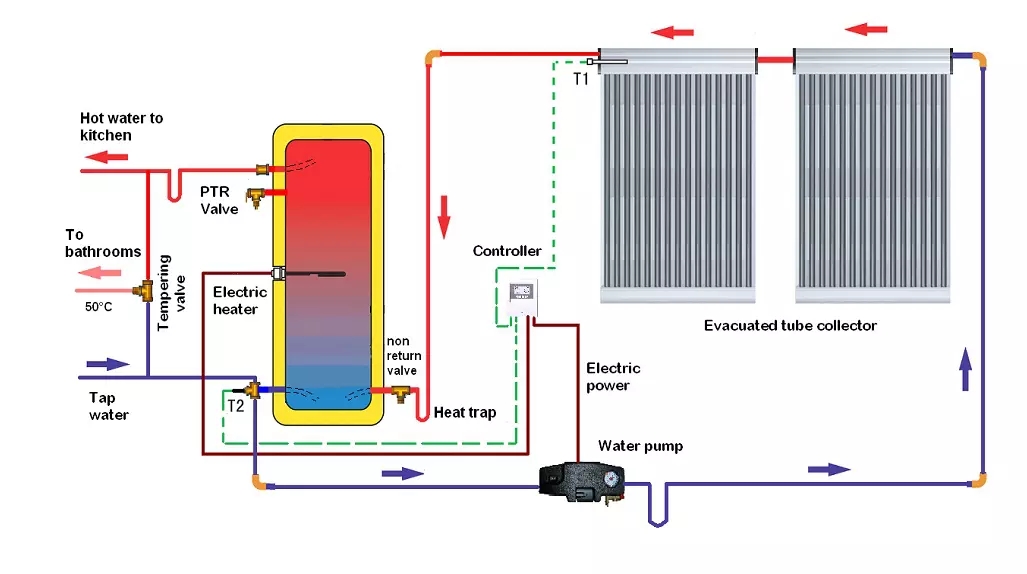

4. Split system, forced pump circulation, beautiful appearance after installation .
5. Solar collector unit has higher performance in a cold climate .
6. SUS304 stainless steel solar water tank
Product Details
Features :
1. Domestic hot water application , even commercial application.
2. 150-300 Liters capacity , more choices.
3. Easy to install ,can be mounted on the flat or pitched roof .
4. Split system, forced pump circulation, beautiful appearance after installation .
5. Solar collector unit has higher performance in a cold climate .
6. SUS304 stainless steel solar water tank
Product Description
| Vacuum Pipe | Specification | φ58×1800 | φ58×1800 | φ58×1800 | φ58×1800 |
| Quantity (piece) | 18 | 20 | 24 | 30 | |
| Pipe distance (mm) | 75 | 75 | 75 | 75 | |
| Main Pipe of Flow Channel | Material | TP2 oxygen-free copper | TP2 oxygen-free copper | TP2 oxygen-free copper | TP2 oxygen-free copper |
| Pipe diameter (mm) | 35 | 35 | 35 | 35 | |
| Wall thickness (mm) | 0.8 | 0.8 | 0.8 | 0.8 | |
| Hot Pipe | Material | TP2 oxygen-free copper | TP2 oxygen-free copper | TP2 oxygen-free copper | TP2 oxygen-free copper |
| Pipe diameter (mm) | 8 | 8 | 8 | 8 | |
| Wall thickness (mm) | 0.6 | 0.6 | 0.6 | 0.6 | |
| Total Area of Heat Collector (m²) | 2.9 | 3.2 | 3.8 | 4.7 | |
| Daylighting Area (m2) | 1.8 | 2 | 2.4 | 3 | |
| Pressure Bearing Capability (Mpa) | 0.6 | 0.6 | 0.6 | 0.6 | |
| External Dimensions (mm) | 1960*1480 | 1960*1630 | 1960*1930 | 1960*2380 | |
| Net Weight (KG) (45ºC) | 68 | 76 | 92 | 114 | |
