Split Pressurized Flat Plate Solar Water Heater for Villa Supplier_ Factory_ Manufacturer-Shandong Sangle Group Co., Ltd.

Split Pressurized Flat Plate Solar Water Heater for Villa

Main Features:
1）High pressure working with safe and stable performance;

2）Wide applications for solar water, room and floor heating;

3）Strong adaptability to various roof structure installations;

4）Most popular for solar water heating applications;

5）Works without over-heating problem to injure system;

6）Super anti-freezing performance to work below -40°C;

Contact Now

Product Details

Main Features:
1）High pressure working with safe and stable performance;

2）Wide applications for solar water, room and floor heating;

3）Strong adaptability to various roof structure installations;

4）Most popular for solar water heating applications;

5）Works without over-heating problem to injure system;

6）Super anti-freezing performance to work below -40°C;

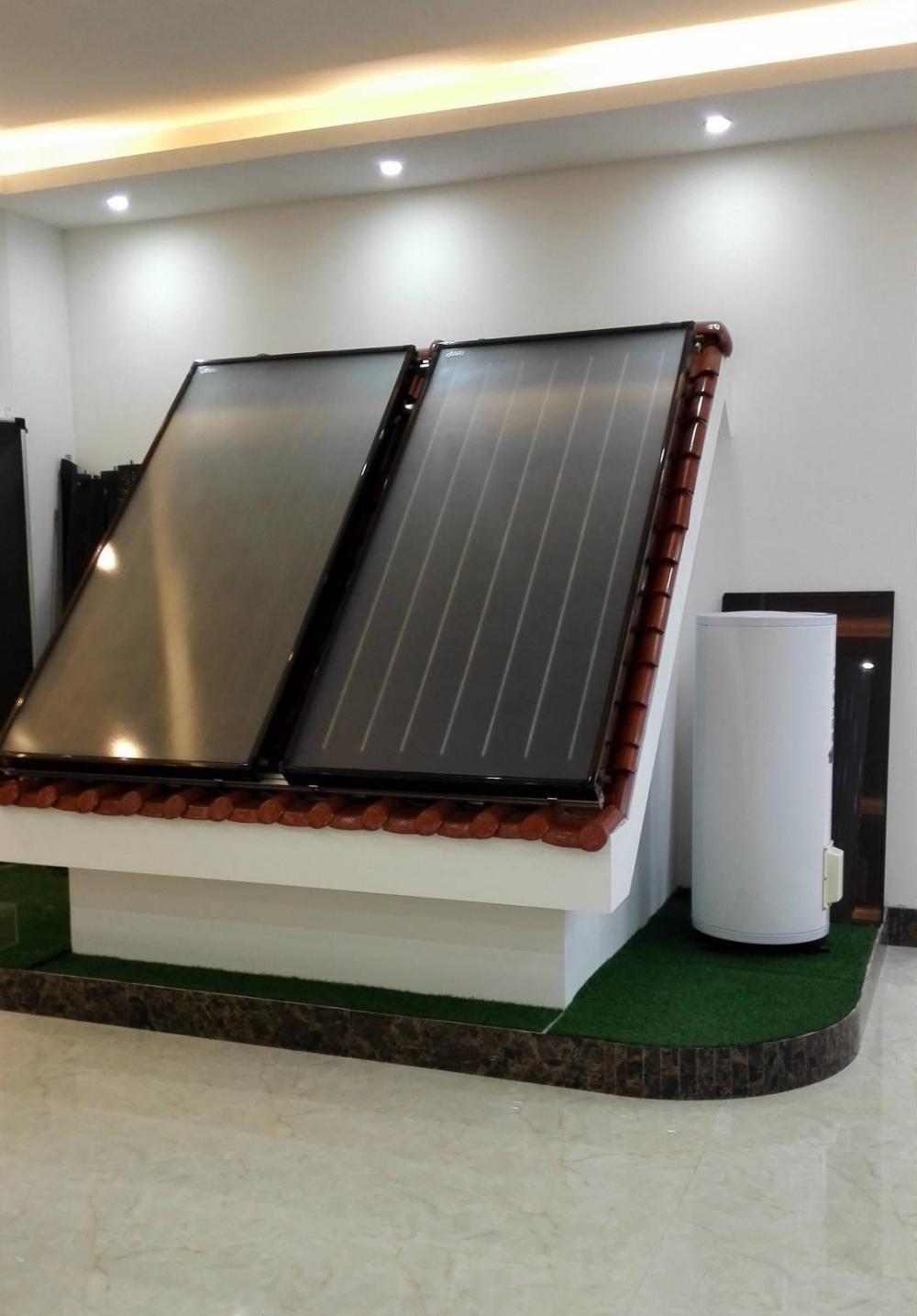

Split Pressurized Flat Plate Solar Water Heater for Villa

Technical parameters:

Name of product	Split Pressurized Flat Plate Solar Water Heater
Specification of Collector	2000X1000X80mm/2500x800x80
Collection Area	2m²
Absorption	>93%
Pressure Bearing Capability	More than 0.7MPa.
Plate Core	Copper and aluminum composite
Material of External Case	The thickened aluminum alloy frame, 0.4mm national standard galvanized zinc back plate, and 3.2mm low-iron tempered glass.
Insulation material	Polyester cotton
Insulation thickness	35mm
Header pipe	ø22*0.6/TP copper
Grid pipe	ø12*0.5/TP copper
Frame Material	Aluminum alloy
Net weight	37kg
