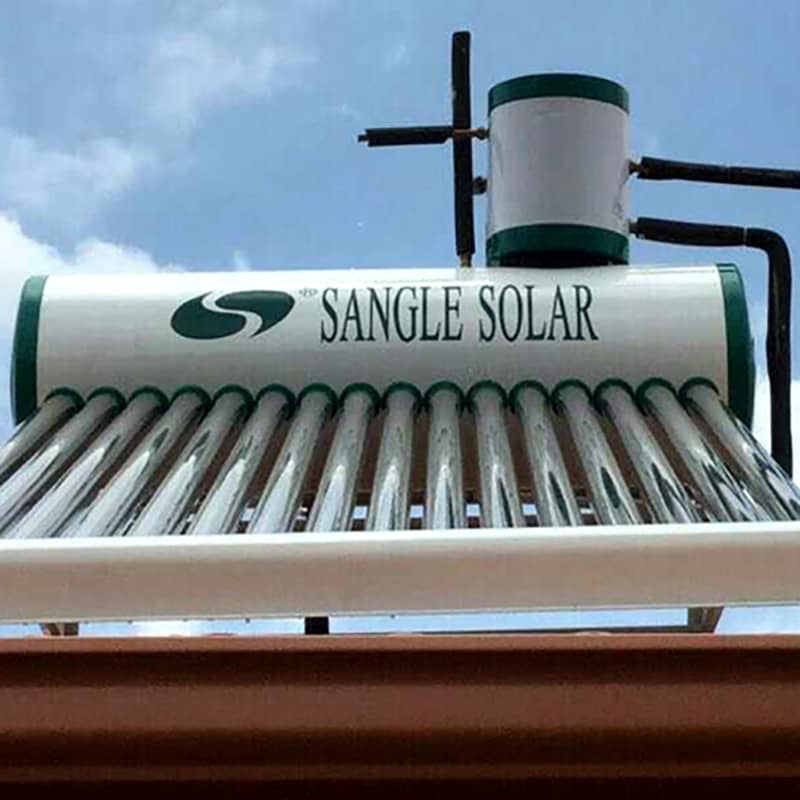

Compact Non-Pressurized Solar Water Heater for Household

High efficiency heat collecting tube, 360 degree solar thermal film, all-round absorption of high-temperature heat;

Flat roof and pointed roof bracket design, suitable for all kinds of roofs


  Contact Now
Product Details

Technical parameters :

1.Inner tank: SUS304/0.4mm

2.Outer tank: color-coated steel plate/0.4mm

3.Insulation: high density polyurethane foam 50mm

4.Vacuum tube: 58*1800mm

5.Bracket: galvanized steel 1.5mm/Aluminum alloy

Feature :

1.SUS304 stainless steel inner tank

2.The inner tank with one-time roll pressing technology without weld seam

3.High temperature and constant pressure polyurethane foam insulation layer

4.High efficiency heat collecting tube, 360 degree solar thermal film, all-round absorption of high-temperature heat

5.Flat roof and pointed roof bracket design, suitable for all kinds of roofs

Optional accessories :

1.Assistant tank - Cold water filling tank

2.Electrical heater

3.Solar Controller


Typeø 58x1800mm
Vacuum Tube16Pc18Pc20Pc24Pc30Pc36Pc
Effective
Collector
Area m²
1.982.232.472.993.744.49
Water Capacity (L)161180201244300357
Water Outlet Amount (L)117131145173216259
Length of Water Drum (mm)137015201670197024202870
Qty(set)20'ft423938322616
40'hq1039690796558
